Tic-Tac-Toe Game

A classic and simple game in which the user competes against a program operating on the blockchain network.

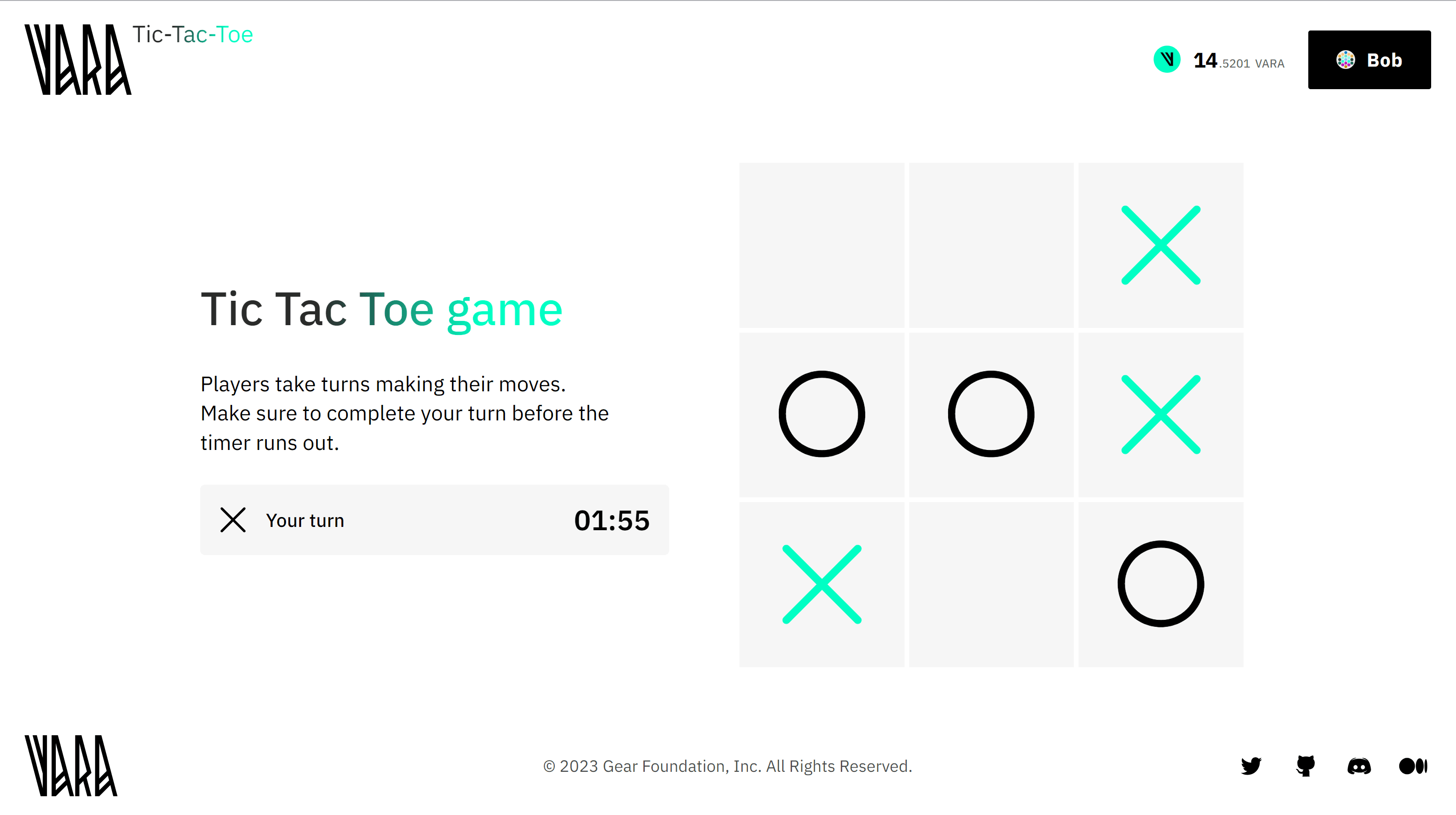

Tic-Tac-Toe

Usually, the state of a program advances as the application is utilized. A distinctive feature of this game's program implementation is its capability to clean up its storage. In other words, as soon as the game session is completed and the results are recorded in the program, all unnecessary data structures are purged through a special delayed message. Delayed messages represent one of the various unique features of the Gear Protocol.

The source code is available on GitHub. The frontend application facilitates gameplay and interacts with the smart program. This article describes the program interface, data structure, basic functions and explains their purpose. It can be used as is or modified to suit your own scenarios.

Everyone can play the game via this link - Play Tic-Tac-Toe (VARA tokens are requred for gas fees).

How to run

Build a program

Additional details regarding this matter can be located within the README directory of the program.

Upload the program to the Vara Network Testnet

Initiate the process by uploading the bot program, followed by the subsequent upload of the main program. Further details regarding the process of program uploading can be located within the Getting Started section.

Build and run user interface

More information about this can be found in the README directory of the frontend.

Implementation details

Program description

The program contains the following information

tic-tac-toe/src/contract.rs
struct Game {
    pub admins: Vec<ActorId>,
    pub current_games: HashMap<ActorId, GameInstance>,
    pub config: Config,
    pub messages_allowed: bool,
}

admins - game admins
current_games - game information for each player
config - game configuration
messages_allowed - access to playability

Where GameInstance is defined as follows:

tic-tac-toe/io/src/lib.rs
pub struct GameInstance {
    pub board: Vec<Option<Mark>>,
    pub player_mark: Mark,
    pub bot_mark: Mark,
    pub last_time: u64,
    pub game_over: bool,
    pub game_result: Option<GameResult>,
}

tic-tac-toe/io/src/lib.rs
pub enum Mark {
    X,
    O,
}

Initialization

To initialize the game program, it only needs to be passed the game configuration

tic-tac-toe/src/contract.rs
#[no_mangle]
extern fn init() {
    let init_msg: GameInit = msg::load().expect("Unable to load the message");

    unsafe {
        GAME = Some(Game {
            admins: vec![msg::source()],
            current_games: HashMap::with_capacity(10_000),
            config: init_msg.config,
            messages_allowed: true,
        });
    }
}

tic-tac-toe/io/src/lib.rs
pub struct GameInit {
    pub config: Config,
}
//
pub struct Config {
    pub s_per_block: u64,
    pub gas_to_remove_game: u64,
    pub time_interval: u32,
    pub turn_deadline_ms: u64,
}

s_per_block - time per block in seconds
gas_to_remove_game - gas to delete a game using delayed messages
time_interval - time after which the game should be deleted using delayed messages
turn_deadline_ms - turnaround time

Action

tic-tac-toe/io/src/lib.rs
pub enum GameAction {
    AddAdmin(ActorId),
    RemoveAdmin(ActorId),
    StartGame,
    Turn {
        step: u8,
    },
    Skip,
    RemoveGameInstance {
        account_id: ActorId,
    },
    RemoveGameInstances {
        accounts: Option<Vec<ActorId>>,
    },
    UpdateConfig {
        s_per_block: Option<u64>,
        gas_to_remove_game: Option<u64>,
        time_interval: Option<u32>,
        turn_deadline_ms: Option<u64>,
    },
    AllowMessages(bool),
}

GameAction::Skip is necessary if you didn't make a move in time (config.turn_deadline_ms)

Reply

tic-tac-toe/io/src/lib.rs
pub enum GameReply {
    GameStarted { game: GameInstance },
    MoveMade { game: GameInstance },
}

Logic

The GameAction::StartGame command is sent to begin the game. If the player has not completed the previous game, the program will not create a new game. Move turn is determined randomly, if the first move is given to the bot, it automatically makes a move to the center of the board.

tic-tac-toe/src/contract.rs
fn start_game(&mut self) {
    let msg_source = msg::source();

    if let Some(current_game) = self.current_games.get(&msg_source) {
        if !current_game.game_over {
            panic!("Please complete the previous game");
        }
    }

    let turn = turn();

    let (player_mark, bot_mark) = if turn == 0 {
        (Mark::O, Mark::X)
    } else {
        (Mark::X, Mark::O)
    };
    let mut game_instance = GameInstance {
        board: vec![None; 9],
        player_mark,
        bot_mark,
        last_time: exec::block_timestamp(),
        game_result: None,
        game_over: false,
    };

    if bot_mark == Mark::X {
        game_instance.board[4] = Some(Mark::X);
    }

    self.current_games.insert(msg_source, game_instance.clone());

    msg::reply(
        GameReply::GameStarted {
            game: game_instance,
        },
        0,
    )
    .expect("Error in sending a reply");
}

After successfully starting a new game, players can take their turn GameAction::Turn{ step }, where a series of the following checks are performed:

tic-tac-toe/src/contract.rs
fn player_move(&mut self, step: u8) {
    let msg_source = msg::source();
    let game_instance = self
        .current_games
        .get_mut(&msg_source)
        .expect("The player has no game, please start the game");
    if game_instance.board[step as usize].is_some() {
        panic!("The cell is already occupied!");
    }
    if game_instance.game_over {
        panic!("Game is already over");
    }

    if game_instance.last_time + self.config.turn_deadline_ms < exec::block_timestamp() {
        panic!("You missed your turn, please skip the move");
    }
    //..

After successful game status checks, the player's move is saved and the time of the last move is updated

tic-tac-toe/src/contract.rs
    //..
    game_instance.board[step as usize] = Some(game_instance.player_mark);

    game_instance.last_time = exec::block_timestamp();

    if let Some(mark) = get_result(&game_instance.board.clone()) {
        game_instance.game_over = true;
        if mark == game_instance.player_mark {
            game_instance.game_result = Some(GameResult::Player);
            send_messages(&msg_source, &self.config);
        } else {
            game_instance.game_result = Some(GameResult::Bot);
            send_messages(&msg_source, &self.config);
        }
        msg::reply(
            GameReply::MoveMade {
                game: game_instance.clone(),
            },
            0,
        )
        .expect("Error in sending a reply");
        return;
    }
    // ..

If the game is over, a delayed message will be sent to delete the game from the program

tic-tac-toe/src/contract.rs
fn send_messages(account: &ActorId, config: &Config) {
    msg::send_with_gas_delayed(
        exec::program_id(),
        GameAction::RemoveGameInstance {
            account_id: *account,
        },
        config.gas_to_remove_game,
        0,
        config.time_interval,
    )
    .expect("Error in sending message");
}

But if the game is not over, the turn passes to the bot and the same actions are performed

tic-tac-toe/src/contract.rs

    let bot_step = make_move(game_instance);

    if let Some(step_num) = bot_step {
        game_instance.board[step_num] = Some(game_instance.bot_mark);
    }

    let win = get_result(&game_instance.board.clone());

    if let Some(mark) = win {
        game_instance.game_over = true;
        if mark == game_instance.player_mark {
            game_instance.game_result = Some(GameResult::Player);
            send_messages(&msg_source, &self.config);
        } else {
            game_instance.game_result = Some(GameResult::Bot);
            send_messages(&msg_source, &self.config);
        }
    } else if !game_instance.board.contains(&None) || bot_step.is_none() {
        game_instance.game_over = true;
        game_instance.game_result = Some(GameResult::Draw);
        send_messages(&msg_source, &self.config);
    }

    msg::reply(
        GameReply::MoveMade {
            game: game_instance.clone(),
        },
        0,
    )
    .expect("Error in sending a reply");
}

Program metadata and state

Metadata interface description:

tic-tac-toe/io/src/lib.rs
pub struct ContractMetadata;

impl Metadata for ContractMetadata {
    type Init = In<GameInit>;
    type Handle = InOut<GameAction, GameReply>;
    type Others = ();
    type Reply = ();
    type Signal = ();
    type State = InOut<StateQuery, StateReply>;
}

One of Gear's features is reading partial states.

tic-tac-toe/io/src/lib.rs
pub enum StateQuery {
    Admins,
    Game { player_id: ActorId },
    AllGames,
    Config,
    MessagesAllowed,
}

tic-tac-toe/io/src/lib.rs
pub enum StateReply {
    Admins(Vec<ActorId>),
    Game(Option<GameInstance>),
    AllGames(Vec<(ActorId, GameInstance)>),
    Config(Config),
    MessagesAllowed(bool),
}

To display the program state information, the state() function is used:

tic-tac-toe/src/contract.rs
#[no_mangle]
extern fn state() {
    let Game {
        admins,
        current_games,
        config,
        messages_allowed,
    } = unsafe { GAME.take().expect("Failed to get state") };
    let query: StateQuery = msg::load().expect("Unable to load the state query");

    match query {
        StateQuery::Admins => {
            msg::reply(StateReply::Admins(admins), 0).expect("Unable to share the state");
        }
        StateQuery::Game { player_id } => {
            let game: Option<GameInstance> = current_games.get(&player_id).cloned();
            msg::reply(StateReply::Game(game), 0).expect("Unable to share the state");
        }
        StateQuery::AllGames => {
            msg::reply(StateReply::AllGames(current_games.into_iter().collect()), 0)
                .expect("Unable to share the state");
        }
        StateQuery::Config => {
            msg::reply(StateReply::Config(config), 0).expect("Unable to share the state");
        }
        StateQuery::MessagesAllowed => {
            msg::reply(StateReply::MessagesAllowed(messages_allowed), 0)
                .expect("Unable to share the state");
        }
    }
}

Source code

The source code of this example of Tic-Tac-Toe Game program and the example of an implementation of its testing is available on gear-foundation/dapp/contracts/tic-tac-toe.
