Getting started in 5 minutes

This guide provides a general overview of running smart contracts on the networks powered by Gear Protocol (such as the Vara Network). It guides you through how to write a smart contract, compile it to Wasm and deploy it to the Gear network.

Prerequisites

  1. Linux users should generally install GCC and Clang, according to their distribution’s documentation. Also, one needs to install binaryen toolset that contains the required wasm-opt tool.

    For example, on Ubuntu use:

    sudo apt install -y clang build-essential binaryen

    On macOS, you can get a compiler toolset and binaryen by running:

    xcode-select --install
    brew install binaryen
  2. Make sure you have installed all the tools required to build a smart-contract in Rust. Rustup will be used to get Rust compiler ready:

    curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh
  3. Now, let's install a nightly version of the toolchain with rustup, since Gear uses the most up-to-date features rustup provides.

    rustup toolchain add nightly
  4. As we will be compiling our Rust smart contract to Wasm, we will need a Wasm compiler. Let's add it to the toolchain.

    rustup target add wasm32-unknown-unknown --toolchain nightly

Note: If you use Windows, download and install Build Tools for Visual Studio.

Creating your first Gear smart contract

  1. For your convenience, it is recommended that you create a dedicated directory for everything Gear-related. The rest of the article will assume that you are using the paths suggested. Type to create a folder in your home directory:

    mkdir -p ~/gear
  2. Let's create a contracts directory inside gear and cd to it.

    mkdir -p ~/gear/contracts
    cd ~/gear/contracts
  3. The next step would be to build a Rust library for our contract:

    cargo new first-gear-app --lib
    cargo new first-gear-app/io --lib
    cargo new first-gear-app/state --lib

    Now, your gear/contracts directory tree should look like this:

    └── first-gear-app
    ├── Cargo.toml
    └── src
    │ └── lib.rs
    ├── io
    │ ├── Cargo.toml
    │ └── src
    │ └── lib.rs
    └── state
    ├── Cargo.toml
    └── src
    └── lib.rs
  4. It's time to write some code. Open first-gear-app with your favorite editor. For VS Code editor type:

    code ~/gear/contracts/first-gear-app
  5. In the first-gear-app folder, create the build.rs file with the following code:

    fn main() {
    gear_wasm_builder::build_with_metadata::<demo_ping_io::DemoPingMetadata>();
    }

    and configure Cargo.toml in order for our contract to be properly built:

    [package]
    name = "first-gear-app"
    version = "0.1.0"
    authors = ["Gear Technologies"]
    edition = "2021"
    license = "MIT"

    [dependencies]
    gstd = { git = "https://github.com/gear-tech/gear.git", branch = "testnet", features = ["debug"] }

    [dev-dependencies]
    gtest = { git = "https://github.com/gear-tech/gear.git", branch = "testnet" }

    [build-dependencies]
    demo-ping-io = { path = "io" }
    gear-wasm-builder = { git = "https://github.com/gear-tech/gear.git", branch = "testnet" }

    [features]
    # Used for inserting constants with WASM binaries (NOT paths) of the contract in
    # the root crate. Usually these constants used in gclient tests instead of
    # strings with paths to the binaries in the "target" directory. If you don't
    # like this approach or don't use gclient tests, you can freely remove this
    # feature from here and from the rest of the code.
    binary-vendor = []

    # It's necessary to include all metawasm crates in the workspace section,
    # otherwise they'll be ignored by Cargo and won't be built.
    [workspace]
    members = [
    "state"
    ]
  6. Replace the default contents of lib.rs in the first-gear-app folder with the code for our first smart-contract.

    This simple smart-contract responds with PONG to a PING message sent to the contract. Open src/lib.rs in your editor and paste the following code:

    use gstd::{debug, msg, prelude::*};

    static mut MESSAGE_LOG: Vec<String> = vec![];

    #[no_mangle]
    extern "C" fn handle() {
    let new_msg = String::from_utf8(msg::load_bytes().expect("Invalid message"))
    .expect("Unable to create string");

    if new_msg == "PING" {
    msg::reply_bytes("PONG", 0).expect("Unable to reply");
    }

    unsafe {
    MESSAGE_LOG.push(new_msg);

    debug!("{:?} total message(s) stored: ", MESSAGE_LOG.len());

    for log in &MESSAGE_LOG {
    debug!(log);
    }
    }
    }

    #[no_mangle]
    extern "C" fn state() {
    msg::reply(unsafe { MESSAGE_LOG.clone() }, 0)
    .expect("Failed to encode or reply with `<AppMetadata as Metadata>::State` from `state()`");
    }

    #[no_mangle]
    extern "C" fn metahash() {
    msg::reply::<[u8; 32]>(include!("../.metahash"), 0)
    .expect("Failed to encode or reply with `[u8; 32]` from `metahash()`");
    }

    #[cfg(test)]
    mod tests {
    extern crate std;

    use gtest::{Log, Program, System};

    #[test]
    fn it_works() {
    let system = System::new();
    system.init_logger();

    let program = Program::current(&system);

    let res = program.send_bytes(42, "INIT");
    assert!(res.log().is_empty());

    let res = program.send_bytes(42, "PING");
    let log = Log::builder().source(1).dest(42).payload_bytes("PONG");
    assert!(res.contains(&log));
    }
    }
  7. In the io folder:

    1. replace the default content of src/lib.rs:
    #![no_std]

    use gmeta::{InOut, Metadata};
    use gstd::prelude::*;

    pub struct DemoPingMetadata;

    impl Metadata for DemoPingMetadata {
    type Init = ();
    type Handle = InOut<String, String>;
    type Others = ();
    type Reply = ();
    type Signal = ();
    type State = Vec<String>;
    }
    1. replace the content of Cargo.toml:
    [package]
    name = "demo-ping-io"
    version = "0.1.0"
    edition = "2021"
    authors = ["Gear Technologies"]
    license = "MIT"

    [dependencies]
    gmeta = { git = "https://github.com/gear-tech/gear.git", branch = "testnet" }
    gstd = { git = "https://github.com/gear-tech/gear.git", branch = "testnet" }
  8. In the state folder:

    1. create the build.rs file with the following code:
    fn main() {
    gear_wasm_builder::build_metawasm();
    }
    1. replace the default content of src/lib.rs:
    #![no_std]

    use demo_ping_io::*;
    use gmeta::{metawasm, Metadata};
    use gstd::prelude::*;

    #[metawasm]
    pub mod metafns {
    pub type State = <DemoPingMetadata as Metadata>::State;

    pub fn get_first_message(state: State) -> String {
    state.first().expect("Message log is empty!").to_string()
    }

    pub fn get_last_message(state: State) -> String {
    state.last().expect("Message log is empty!").to_string()
    }

    pub fn get_messages_len(state: State) -> u64 {
    state.len() as u64
    }

    pub fn get_message(state: State, index: u64) -> String {
    state
    .get(index as usize)
    .expect("Invalid index!")
    .to_string()
    }
    }

    1. replace the content of Cargo.toml:
    [package]
    name = "demo-ping-state"
    version = "0.1.0"
    edition = "2021"
    license = "MIT"
    authors = ["Gear Technologies"]

    [dependencies]
    gstd = { git = "https://github.com/gear-tech/gear.git", branch = "testnet" }
    gmeta = { git = "https://github.com/gear-tech/gear.git", branch = "testnet", features = ["codegen"] }
    demo-ping-io = { path = "../io" }

    [build-dependencies]
    gear-wasm-builder = { git = "https://github.com/gear-tech/gear.git", branch = "testnet", features = ["metawasm"] }
  9. Now compile the smart-contract to Wasm

cd ~/gear/contracts/first-gear-app/
cargo build --release

If everything goes well, your working directory should now have a target directory that looks like this:

    ├── meta.txt
├── target
├── CACHEDIR.TAG
├── meta.txt
├── release
│   └── ...
└── wasm32-unknown-unknown
└── release
├── ...
├── first_gear_app.wasm <---- this is our built .wasm file
├── first_gear_app.opt.wasm <---- this is optimized .wasm file
└── first_gear_app.meta.wasm <---- this is legacy meta .wasm file

The target/wasm32-unknown-unknown/release directory contains three Wasm binaries:

  • first_gear_app.opt.wasm is the optimized Wasm aimed to be uploaded to the blockchain
  • meta.txt is the Wasm containing meta information needed to interact with the program
  • first_gear_app.wasm is the output Wasm binary built from source files
  • first_gear_app.meta.wasm is the legacy Wasm containing meta information needed to interact with the program

Deploy your Smart Contract to the Testnet

Gear provides a demo application that implements all of the possibilities of interaction with smart-contracts in Gear networks, available in idea.gear-tech.io.

Create account

  1. Download the Polkadot extension for your browser via https://polkadot.js.org/extension/. This extension manages accounts and allows the signing of transactions with those accounts. It is a secure tool that allows injecting your accounts into any Substrate-based dapp. It does not perform wallet functions, e.g send funds.

  2. Once downloaded, click + button to create a new account:

    Add account

  3. Make sure you save your 12-word mnemonic seed securely.

    Create account

  4. Select the network that will be used for this account - choose "Allow to use on any chain". Provide any name to this account and password and click "Add the account with the generated seed" to complete account registration.

    Finalizing account

  5. Go to idea.gear-tech.io. You will be prompted to grant access to your account for Gear Tech application, click "Yes, allow this application access".

    Allow access

  6. Make sure you are connected to the Gear Staging Testnet V7. The network name is on the bottom left corner of the page.

    Network name

  7. You may switch the network by clicking on the network name.

    Switch network

  8. Click the Connect button on top-right to select an account that will be connected to Gear Tech.

    Connect account

  9. In accordance with the Actor model, smart contracts are uploaded to a network via messages. Gear node charges a gas fee during message processing. Your account balance needs to have enough funds to upload a smart-contract to the TestNet. Click the following button to get test balance:

    Get balance

    A notification about successful balance replenishment will appear after passing captcha at the bottom of the window. You can also see the current account balance next to the account name in the upper right corner.

    Transfer balance

Upload program

  1. When your account balance is sufficient, click the Upload program and navigate to the .opt.wasm file we have pointed to above. Also upload the meta.txt file.

    Upload program button

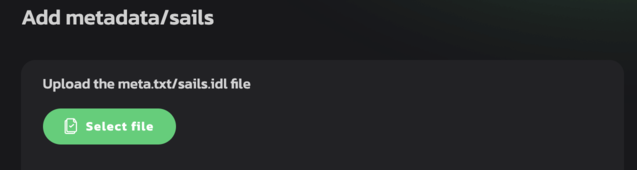

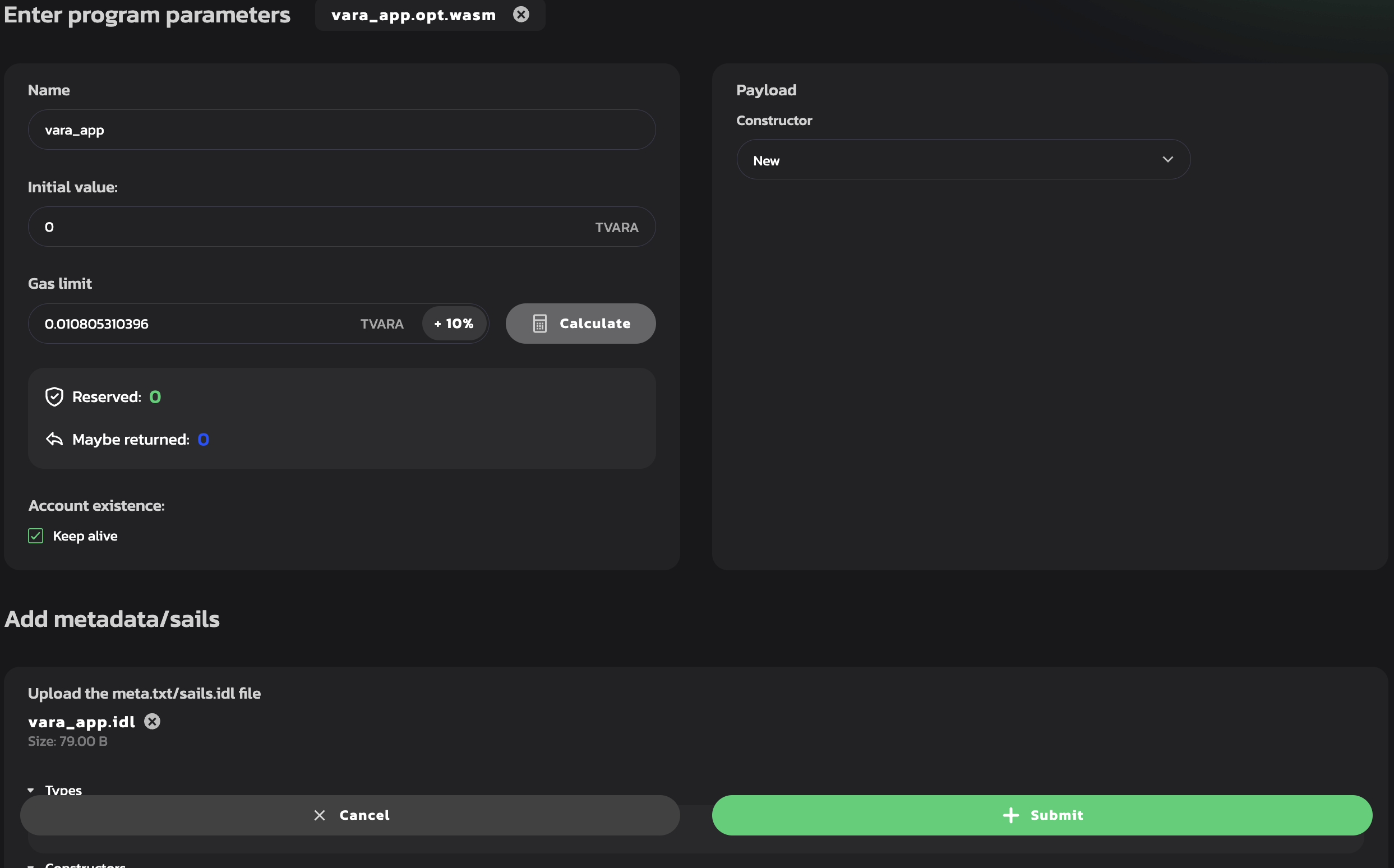

  2. Specify program Name and click Calculate Gas button. The Gas limit will be set automatically. Now click the Upload program button.

    Upload program form

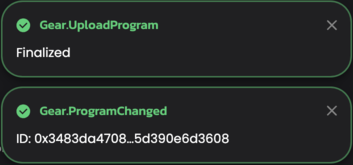

  3. Sign the program uploading the transaction to the Gear network. Also, sign in the program and meta data uploading to the Gear demo environment so you could work with the program. It is recommended to set the checkbox Remember my password for the next 15 minutes for your convenience.

    Sign transaction

note

Programs

The red dot status for a program indicates init failure. Try to upload the program again with increased Gas limit.

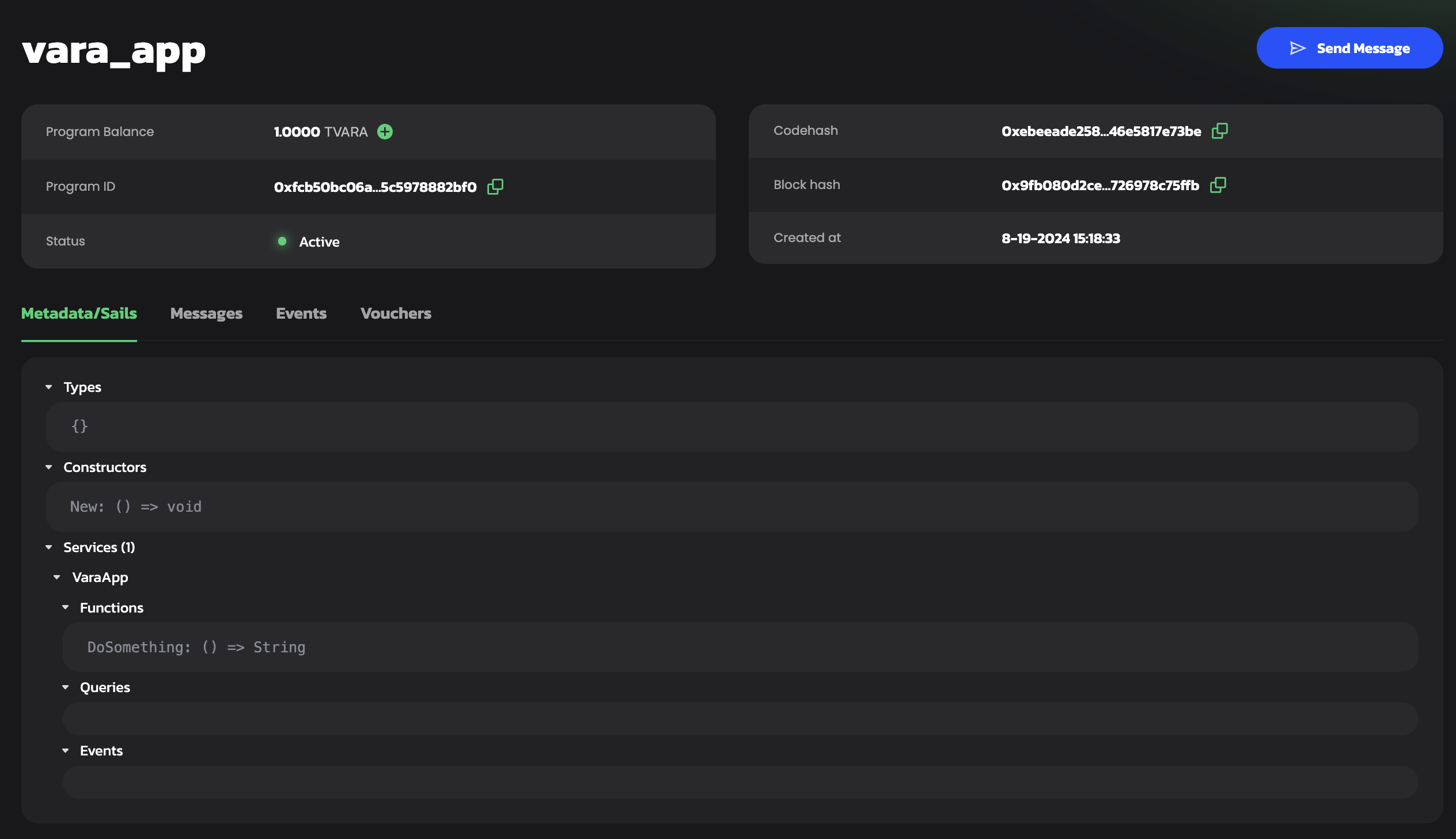

  1. Once your program is uploaded, head to the Programs section and find your program.

    Recently uploaded programs

Send message to a program

  1. Now, try sending your newly uploaded program a message to see how it responds! Click the Send message button.

  2. In the Payload field of the opened dialog type PING. Click Calculate Gas button, the Gas limit will be set automatically. Now click the Send Message button.

    Send form

  3. Sign the message sending transaction as it is shown in the step 3 of section Upload Program.

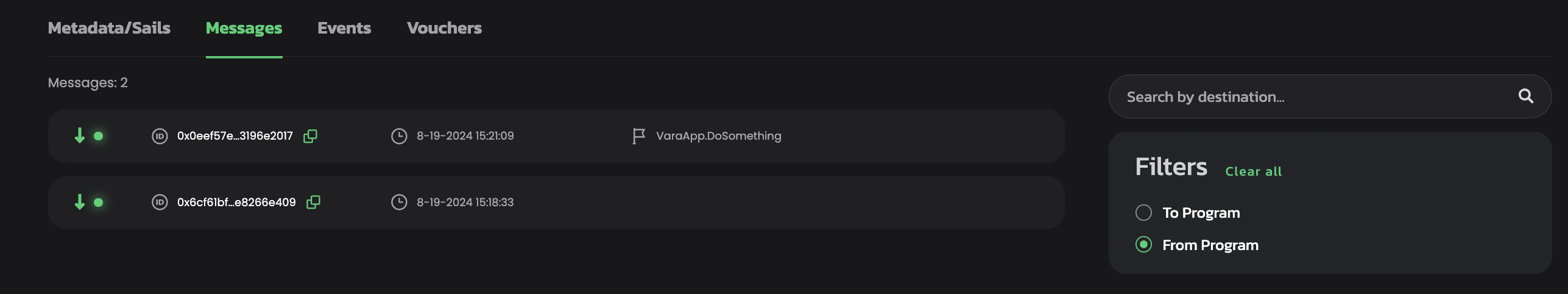

  4. After your message has been successfully processed, you are to see correspondent log messages:

    Log

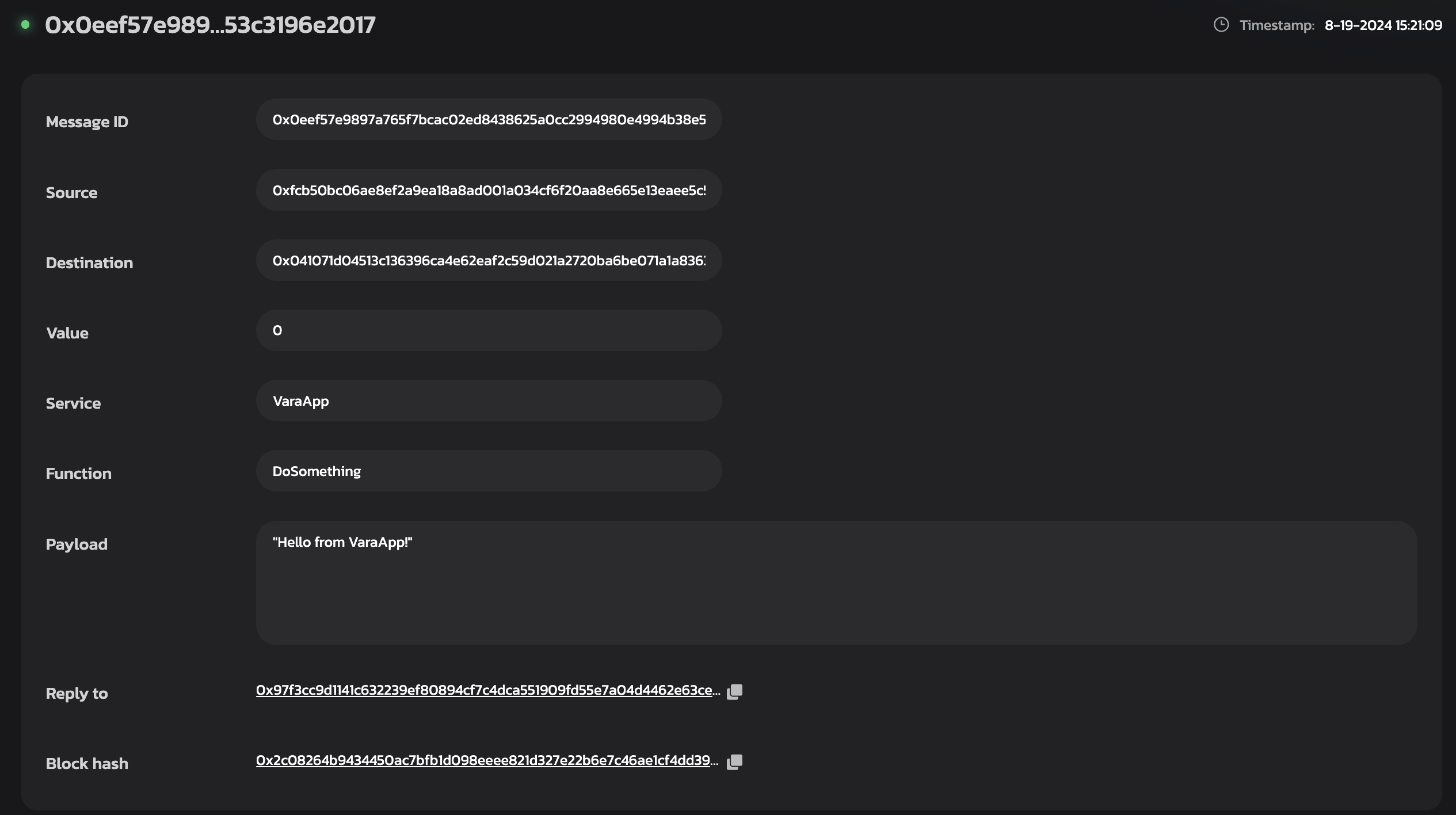

  5. Press the Mailbox button to enter the mailbox and find the reply.

    Mailbox reply

    note

    The reply is in the mailbox for a limited time depending on the gas limit. If you don't see the reply, try resending the PING message with the gas limit increasing and go to the mailbox immediately after sending the message.


Further reading

For more info about writing smart contracts for Gear and the specifics behind the smart contract implementation, refer to this article on Smart Contracts.
